This torsion axis CNC press brake delivers high working efficiency with fast positioning and smooth continuous bending. It features stable performance, high bending accuracy and easy operation.

With outstanding cost performance, it adopts mature reliable configurations, low maintenance cost and long service life. It is the ideal cost-effective choice for sheet metal processing and batch production.

TP10S Control System

---

Angle programming，Multi-step programming，Tool library
The opening height of each step is programmable
Support Magnetic scale
Large arc function
Material library, plate length, plate thickness, etc
40 programs, 25 steps per program
Multi-axis expansion X-axis,Y1-axis,Y2-axis,R-axis and C-axis

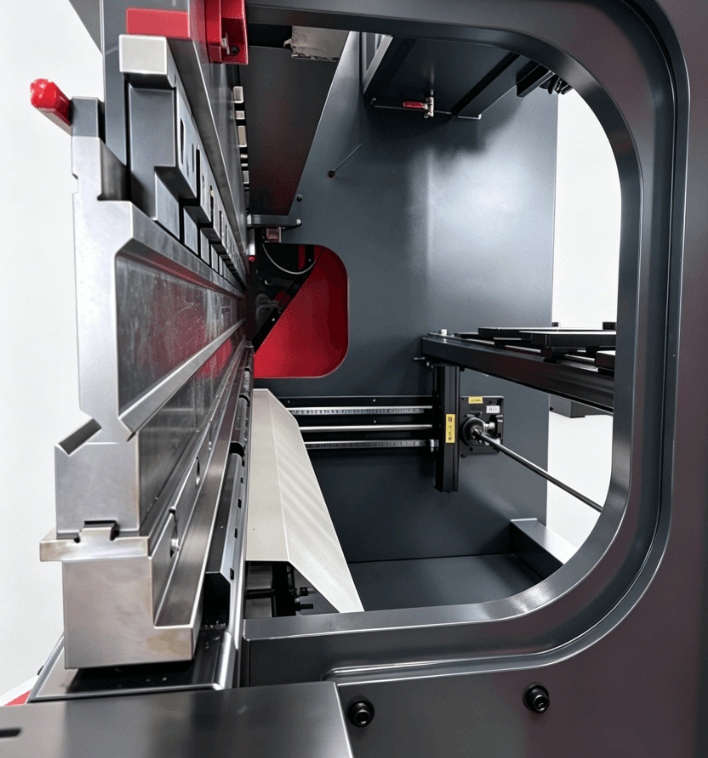

Bending mold

---

The upper and lower molds adopt segmented short molds, and the length required for splicing has high precision and good interchangeability, and is easy to disassemble. The connecting part is equipped with a compensation mechanism to compensate the deflection of the worktable and the slider when bending the sheet to ensure high working accuracy.

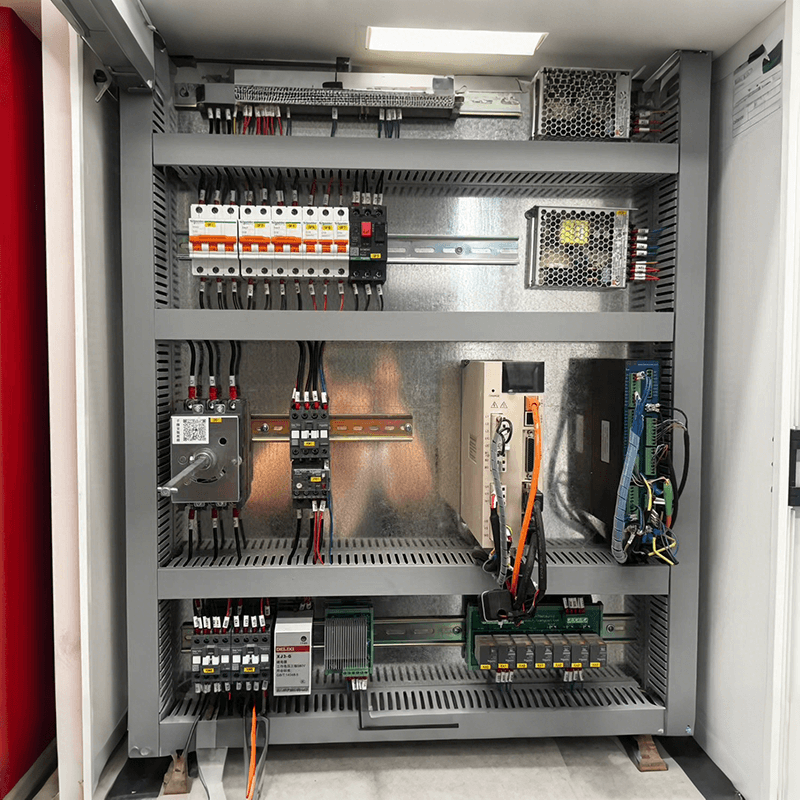

Distribution box

---

Once an abnormality occurs, itshould be able to detect through the system and give an alarm immediately. Motor overload and short circuitprotection adopts automatic air switch; there is short circuit protection of control circuit; all “emergency stop” buttons are interlocked, press any one, the machine tool will
stop

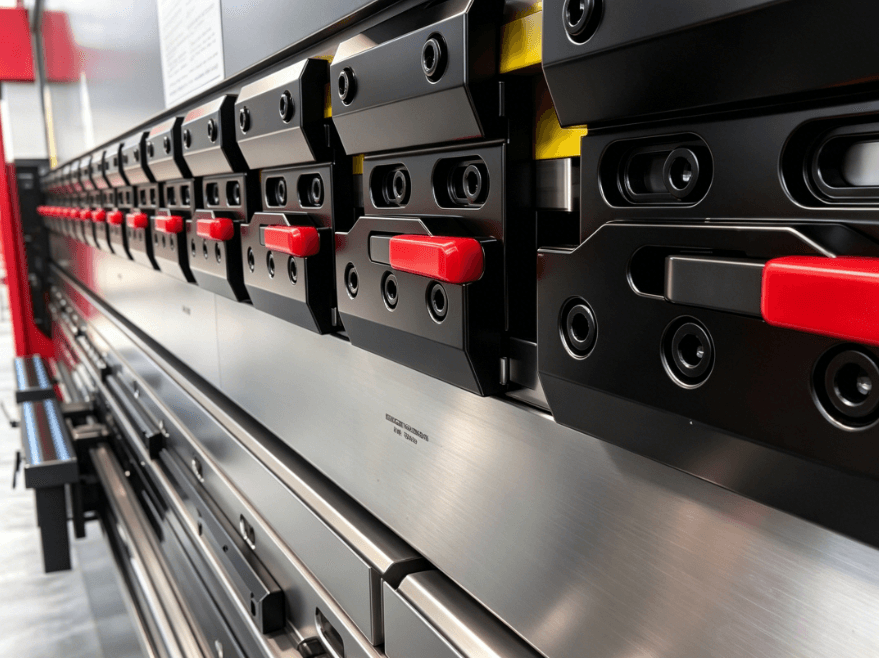

Wear-resistant Quick Clamp

---

The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.

Distribution box

---

Once an abnormality occurs, itshould be able to detect through the system and give an alarm immediately. Motor overload and short circuitprotection adopts automatic air switch; there is short circuit protection of control circuit; all “emergency stop” buttons are interlocked, press any one, the machine tool will
stop

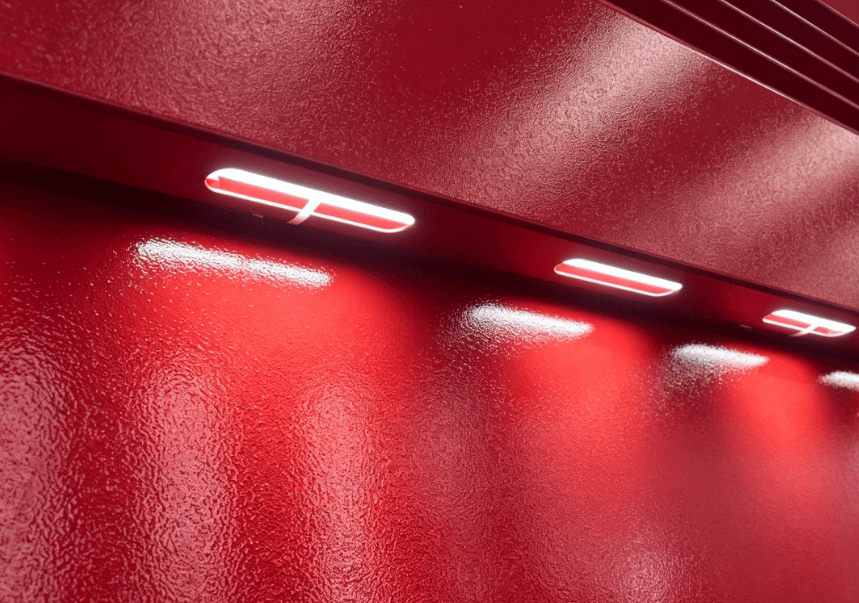

Night Work Lighting System

---

Equipped with professional night lighting lamps around the working area, it provides soft and uniform illumination. Clear visibility for bending positioning and workpiece inspection even in dim environment, ensuring accurate operation and improving working safety and efficiency at night.
