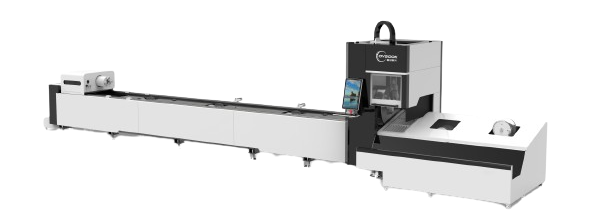

Tube Laser Cutting Machine

tube laser cutting machine

Suitable for different metal materials
Auto focus
Automatic edge searching
Automatic temperature adaptation
Intelligent display screen
Multiple languages

Inquiry
Work Area6m/12m
Laser Source Power1500w / 2000w /3000w /6000w
Laser Source BrandMAX
Laser HeadAuto Focusing BM110
ChillerHanli
Servo MotorDelta / Fuji
ReducerBeitto
tube laser cutting machine parameter
MODELHY-Tp Series
POWER(OPTIONAL)1500w/2000w/3000W/6000W
PROCESSING FORMAT6M/7M/12M/customizable
MAXIMUM SPEED1.5G
MAXIMUM LINKAGE SPEED120m/min
REPEATED POSITIONING ACCURACY±0.03mm
TEMPERATURE AND HUMIDITY REQUIREMENTS0-45℃/35%-70%

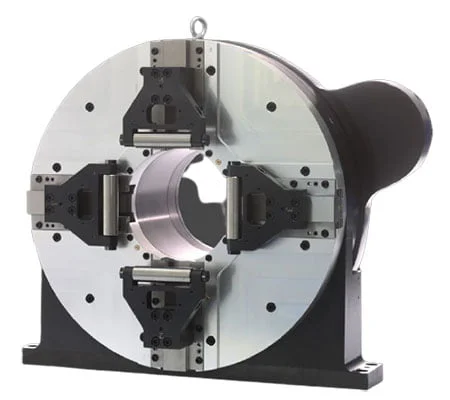

High quality chuck

Professional pipe cutting machine chuck, stable performance, strong clamping force, less waste, reduce waste, convenient regular on-site maintenance

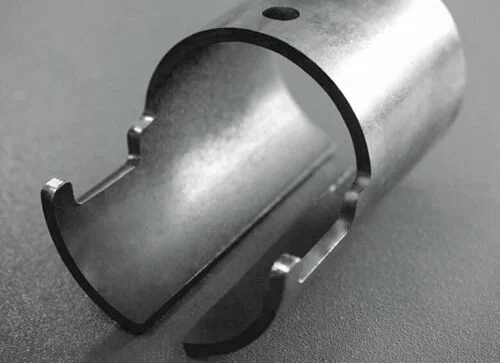

Professional processing of pipes

·Non-sensing punching: punching does not pause, enjoy smooth processing

·Z-axis algorithm supports interpolation following: flattened pipes have faster Z-axis coordination and smoother corner transition.

·Supports pipe fly cutting: the same pipe surface has more efficient fly cutting of regular repeated graphics

The Cast Iron Bed

Utilizing a custom cast iron bed with flake graphite and a minimum tensile strength of 200 MPa ensures robustness and durability.
This construction maintains machine tool accuracy over a remarkable 50-year span, delivering consistent and reliable performance over time.

MaterialsCarbon steel, stainless steel, aluminum, copper, brass

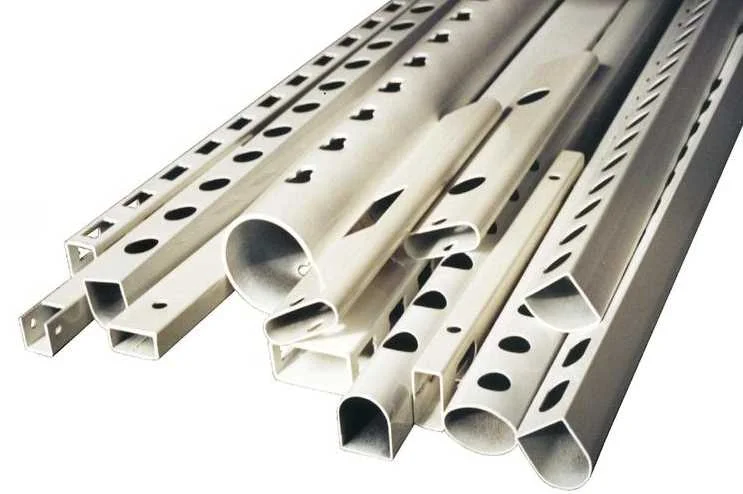

Tube shapesRound, rectangular, square and other standard profiles
Chuck size (optional)120/160/245/290/300/360mm
Processing rangeRound max: 0-360 mm
Square max: 0-360 x 360 mm
Circumscribed circle: less than 360 mm
Maximum raw material length6000-12000 mm customizable
Maximum tube weight100-600kg（According to the chuck size）
Number of chucksSingle, double, triple

Questions that you may be concerned about

Yes. The machine can be equipped with optional systems. The system configuration can be determined according to your needs to achieve the addition of groove function.

yes ， in addition to 6m/12m, you can customize larger size.

Lasers, cutting heads, systems, servo motors, chucks, etc. We can choose the brands of these accessories and provide you with the best and highest quality.

The size of the pipe cutting machine is relatively large, so we need to use a large cabinet for transportation. Before that, we will use a steel structure to fix it and wrap it with plastic wrap to ensure that the equipment is intact.
